Fieldpiece Wireless Power Clamp Meter SC680 Review for HVACR Professionals

Description

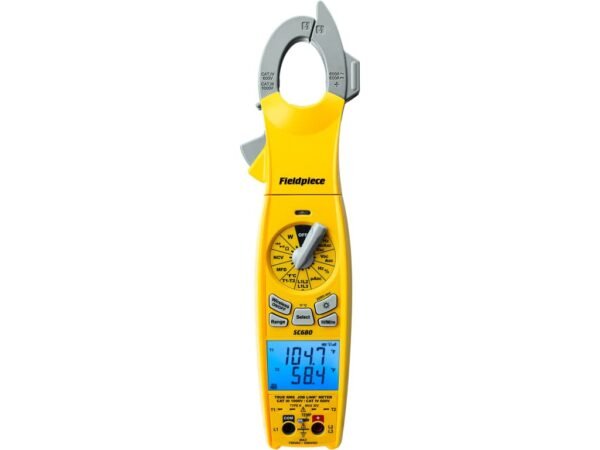

Highlights of the Fieldpiece SC680 Wireless Power Clamp Meter

The Fieldpiece SC680 Wireless Power Clamp Meter impressed me right from the start with its versatile features tailored for HVACR professionals. One standout attribute is its swivel head, which adds incredible flexibility when working in tight spaces—a godsend when chasing down those hard-to-reach mini-split connectors. The fact that this clamp meter supports dual Type K temperature ports means I can measure both entering and exiting air temperatures simultaneously, offering a detailed Delta T analysis that’s crucial for diagnosing HVAC system efficiency.

Its True RMS sensing technology delivers precise voltage and current readings, especially beneficial when testing variable frequency drives (VFDs). The inclusion of DC amps and diode testing capabilities makes it the only tool needed for troubleshooting mini-split systems, removing the hassle of carrying multiple devices. Additionally, the inrush current mode is handy for capturing the starting amp draw of compressors, a feature I found especially useful during startup diagnostics.

• Swivel head enhances usability in cramped spots
• Dual Type K temperature ports for accurate Delta T measurement
• True RMS sensing for reliable readings on VFDs
• Inrush current mode for compressor startup analysis

Limitations That Caught My Attention

Despite the many strengths, a few drawbacks became apparent during use. For instance, although the wireless range is advertised at 1000 feet, practical indoor usage seemed limited to about 115 feet, especially in environments with obstructions. It could be misleading for users expecting the maximum range in all settings. Also, the meter requires a 9V battery, which isn’t the most common or long-lasting power source compared to rechargeable options found in some competing models.

Another point worth noting is the size and weight—at 18.5 x 4 x 3.5 inches and 29 ounces, the meter feels a bit bulky for extended handheld use. While the heavy-duty magnet for hanging the device on metallic surfaces is convenient, the overall heft can cause fatigue during long diagnostic sessions.

• Wireless range reduced indoors to around 115 feet
• Requires standard 9V battery instead of rechargeable
• Bulkiness may lead to hand fatigue over time

User Experience and Daily Application

Using this wireless clamp meter felt like having a tech assistant by my side. The direct integration with the Job Link app is a game-changer, allowing me to document measurements live and share system health reports with customers in real time. This feature alone has elevated my workflow efficiency and communication clarity, especially when paired with other Job Link tools. The fact that the SC680 doesn’t require the additional JL2 transmitter simplifies setup considerably.

My coworkers appreciated the phase rotation test, which only requires two leads to verify the order of three-phase voltage lines. It’s a quick way to confirm motor wiring without fumbling with excessive cables. The RCT2 probe tips included are ideal for voltage and resistance measurements on mini-split systems, making those cramped connectors much less frustrating to tackle.

Competitors in the Wireless Clamp Meter Market

Comparing this model with other wireless clamp meters like the Fluke 377 and Klein Tools CL800, the SC680 stands out for its HVAC-specific features; the dual temperature ports and DC amp testing are not as commonly found in competitors. However, Fluke’s offering shines in its rugged build quality and longer battery life, while Klein Tools may offer more budget-friendly options with slightly fewer features.

The SC680’s Job Link app integration is more user-friendly than many competitors’ software, providing clear, real-time data that’s invaluable in professional HVAC diagnostics. On the flip side, the bulkier design and limited battery options place it slightly behind the more ergonomic and rechargeable models in the same class. For those prioritizing HVAC system troubleshooting, this meter delivers a tailored experience; for more general electrical work, alternatives might be worth considering.

Price Performance and Value Proposition

Considering the extensive feature set, the SC680 offers strong value for price. It consolidates multiple tools into one unit, which means less gear to carry and maintain. Its ability to test everything from power to phase rotation, temperature, and inrush current justifies the investment for HVAC professionals who demand precision and efficiency.

That said, the price might feel steep for casual users or those who don’t need all the specialized functionalities. The wireless range limitation indoors and battery type might make some hesitate if they’re used to rechargeable meters with longer standby times. Still, for its intended purpose, the device delivers quality and functionality that align well with its cost, especially when factoring in the time saved through app integration and multi-feature design.

Benefits That Enhance Daily Use

I found several benefits that make this clamp meter a must-have in my toolkit:

• Wireless freedom with a solid 115-foot indoor range reduces cable clutter.
• Swivel clamp head simplifies access to awkward wiring.
• Live data streaming through Job Link app enables streamlined reporting.
• Multi-functionality, including DC amps, phase rotation, and temperature measurement, covers broad diagnostic needs.
• Heavy-duty magnet offers hands-free operation, which is surprisingly helpful.

Areas for Improvement

On the flip side, potential users should be aware of some areas where this meter could be improved:

• The battery life could be longer, and a rechargeable option would be preferable.
• The device’s size and weight might be cumbersome for extended handheld tasks.
• The wireless range is less than advertised inside buildings filled with obstacles.
• Display readability in bright sunlight could be better, as glare sometimes made it hard to read.

Detailed Features and Settings Explored

Digging into the features, the phase rotation test deserves special mention. It allows checking the order of three-phase voltages with only two leads, a trick that saves time and reduces setup complexity. The meter also measures frequency directly via the clamp jaw, which is convenient for verifying mini-split inverter operations.

Switching between different modes like True RMS for VAC and AAC, inrush current mode, and diode testing is straightforward thanks to the intuitive interface. The dual temperature inputs work seamlessly, and I appreciated monitoring Delta T without juggling separate thermometers. The meter’s ability to handle 1000V DC and withstand industrial environments gives it robustness that professionals will appreciate.

Using the Job Link app, I could capture live measurements and generate clear, shareable reports that helped explain system issues to clients. This feature alone has made my diagnostic process smoother and more transparent.

This wireless clamp meter is clearly designed with HVAC technicians in mind, combining a rich feature set with smart software integration. While it has some ergonomic and battery-related drawbacks, the overall package delivers reliable measurements, handy wireless convenience, and detailed system insights that make it a strong contender in its category.
