Fluke 773 Milliamp Process Clamp Meter Review Best Accuracy and Features Uncovered

Description

Positive Features That Stand Out

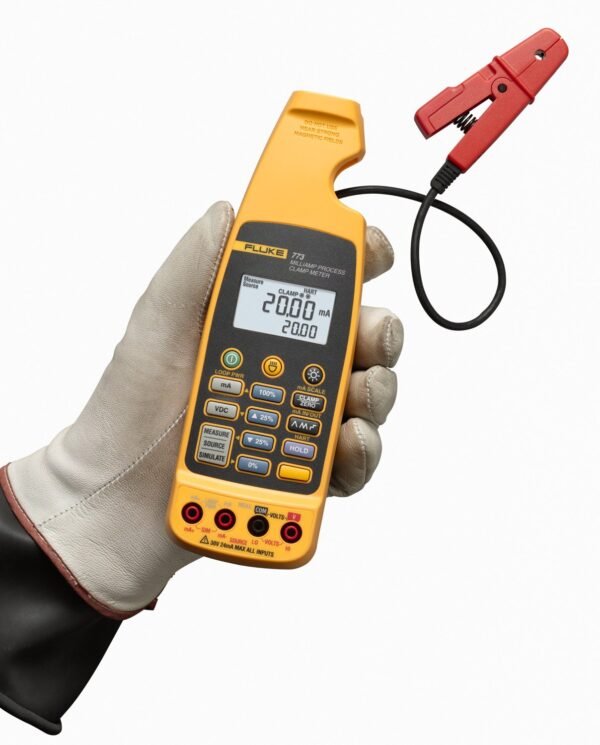

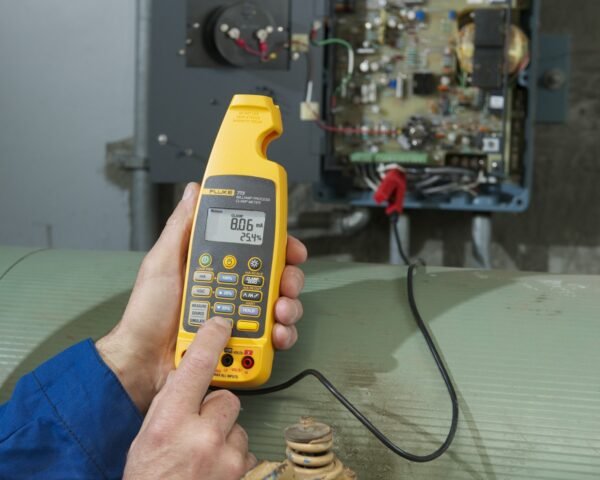

Using the Fluke 773 Advanced Milliamp Process Clamp-Meter has been quite an experience, especially since it caters specifically to tricky 4-20 mA loop measurements without the hassle of breaking circuits. One feature that truly impressed me is its detachable clamp with a 1-meter extension cable, which makes accessing tight or awkward spaces much easier. The clamp itself can measure DC current up to 100 mA, and the manual-ranging functionality lets me select the appropriate measurement range, ensuring precision.

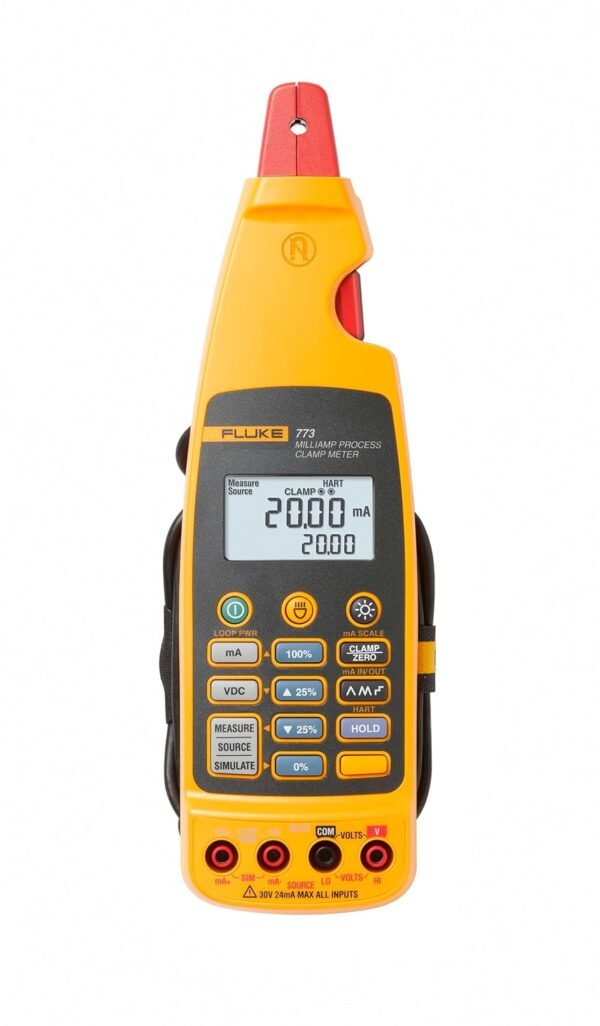

The built-in backlight and a handy LED spotlight are lifesavers when working in dimly lit control panels or dark enclosures. This means I don’t have to fumble around with a flashlight or guess at connections. Plus, the LCD shows both milliamp readings and percent of the 4-20 mA span, which is a clever way to keep tabs on signal accuracy and loop health simultaneously.

Here are some of the key benefits I noticed:

• Measures 4-20 mA signals without breaking the loop, saving time and avoiding system downtime.
• Compact design with a detachable clamp and extension cable for hard-to-reach spots.
• Backlit LCD and LED spotlight improve visibility in low-light environments.
• Exceptionally accurate with a 0.2% margin of error, which is crucial for sensitive industrial applications.

Drawbacks Worth Considering

Even though the meter shines in many areas, it’s not without its quirks. For instance, the manual-ranging feature requires you to know the expected signal range ahead of time. This can slow down the process if you’re unsure or if you’re hopping between different loop settings frequently. An auto-ranging option would have made this a lot more user-friendly.

Battery life is decent but could be better. It runs on four AA batteries and auto-shuts off after 15 minutes of inactivity, which is great for saving power but occasionally caught me off guard when it powered down mid-task. There’s a low-battery indicator, but I’d prefer a more prominent alert or a rechargeable battery option for convenience.

Other limitations I found include:

• Requires manual selection of measurement range, which isn’t ideal for all users.
• Battery-powered; lacks a rechargeable option, meaning you’ll need spares on hand.
• The clamp size restricts it to conductors up to 4.5 mm in diameter, limiting use on larger cables.

Versatility in Features and Functionality

I appreciated how this clamp meter isn’t just a one-trick pony. Besides measuring milliamp current, it can source and simulate DC signals up to 20 mA and source DC voltage up to 10 V. This is particularly useful when testing loop devices or transmitters, as I could simulate signals to verify system responses without additional equipment.

The inclusion of test leads for measuring DC up to 24 mA and voltage up to 30 V adds another layer of flexibility. The data hold function is a small but important feature that lets me freeze readings on the display, which comes in handy when working in cramped spaces where I can’t always watch the meter continuously.

The meter also incorporates a built-in 24 V loop power supply, meaning I can power transmitters directly without an external source. This integration reduces the gear I need to carry around and helps streamline troubleshooting processes.

Ease of Use and Practical Experience

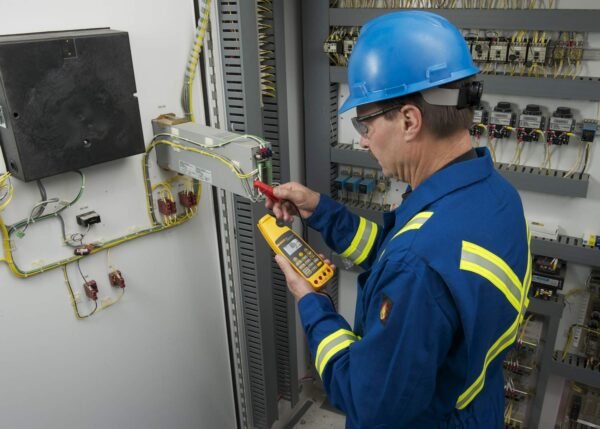

As someone who frequently works on industrial control systems, ease of use is a big deal. The Fluke clamp meter’s ergonomic design and lightweight build make it comfortable to hold for extended periods. The yellow housing is highly visible among my tools, reducing the chance of misplacing it on busy job sites.

While my coworkers and I found the LED spotlight helpful for wire identification, setting the manual range sometimes led to a bit of trial and error, especially for those less familiar with loop signal standards. However, the clear LCD display and intuitive buttons minimize confusion once you get the hang of it.

My nephew, who’s an apprentice electrician, also tried it out and liked the soft carrying case that came with the meter. It protects the device while making transport hassle-free.

Competitive Options and Market Rivals

Comparing this clamp meter to other similar products, it holds its ground well, especially against brands like Extech and Klein Tools, which offer basic clamp meters for loop measurements. The accuracy of 0.2% is better than many rivals, making it a solid choice for precise industrial tasks.

However, some competing models provide auto-ranging features and larger clamp jaws, which can be advantageous for users dealing with varied conductor sizes or who prefer a more automated approach. Others might include Bluetooth connectivity for remote data logging, a feature missing here.

Still, the built-in 24 V loop power supply and the ability to source signals place this meter above many in terms of functionality and versatility. For users primarily focused on 4-20 mA loop troubleshooting in tight spaces, this unit offers a specialized solution that many general-purpose clamp meters can’t match.

Value for Money and Investment Considerations

Considering the capabilities packed into this meter, its price-performance ratio is quite favorable. You’re getting a highly accurate, versatile tool that can handle multiple tasks beyond simple current measurement. The ability to simulate signals and power transmitters adds real value for professionals who need to diagnose and maintain control loops efficiently.

Though it’s not the cheapest option on the market, the Fluke’s robust build quality and safety certifications justify the investment, especially since it meets IEC, CSA, and Australian safety standards. This means it’s reliable in demanding industrial environments, reducing downtime and costly errors.

Design and Durability in Real-World Use

The meter’s design speaks to its industrial purpose: rugged, compact, and practical. The clamp’s jaws close securely around conductors up to 4.5 mm, and the detachable feature lets me work comfortably even in confined spaces. The bright yellow casing is both a visual aid and a tough shell that withstands drops and rough handling.

Although it’s made in China, the build quality reflects Fluke’s reputation for durable test equipment. I’ve noticed no issues with the clamp mechanism or display after repeated use, and the soft carrying case provides excellent protection during transport.

Safety and Compliance

Safety is non-negotiable when dealing with electrical measurements, especially in industrial settings. This clamp meter adheres to IEC 61010-1 and 61010-2-032 safety standards, plus it carries CE and CSA certifications. These credentials ensure the device is built with proper insulation, overload protection, and withstands typical hazards encountered during loop testing.

Having this level of safety compliance gives me peace of mind when working on live circuits. The non-contact clamp measurement also reduces the risk of accidental shorts or shocks by eliminating the need to break the loop or physically connect probes to the conductor.

The Fluke 773 Advanced Milliamp Process Clamp-Meter offers a blend of precision, convenience, and safety that’s hard to find in one package. While it has a few shortcomings like manual ranging and battery dependence, the overall experience aligns closely with what professionals need for efficient and accurate loop troubleshooting in industrial environments.
