Description

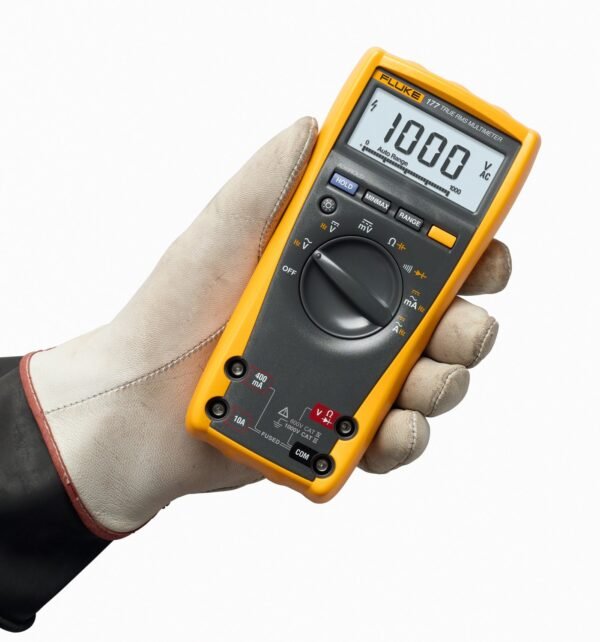

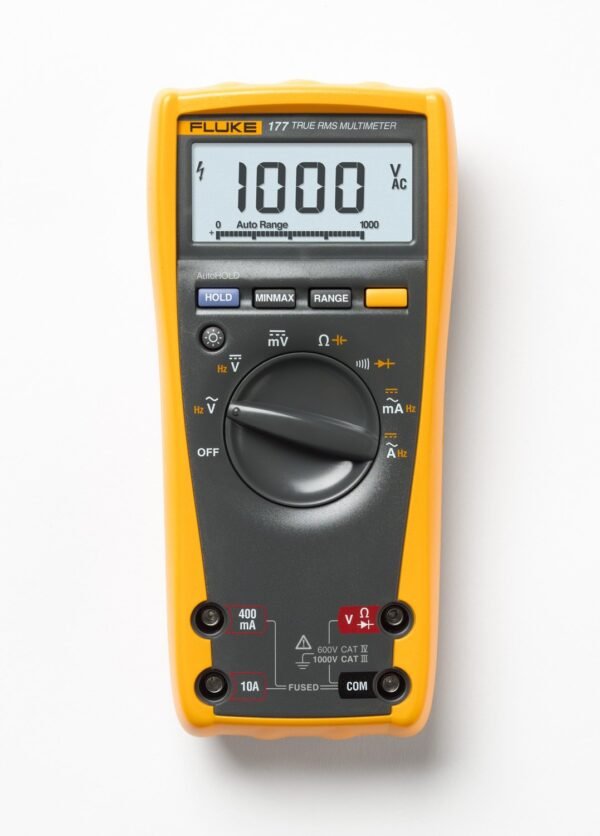

Highlights of the Fluke 177 True-RMS Digital Multimeter
The Fluke 177 True-RMS Digital Multimeter covers a lot of ground for a handheld meter. Right from the start, its 6000-count digital display with a backlight makes readings clear even in dimly lit workshops. The 33-segment analog bar graph, updating 40 times a second, gives rapid feedback that’s a godsend for tuning circuits or catching fleeting signal changes. The auto and manual ranging features are intuitive; the meter automatically picks the best range for accuracy, but it can be overridden when needed. The hold and auto-hold functions are lifesavers during complex troubleshooting, freezing stable readings or signalling with a beep when a new one arrives.
- True RMS measurement ensures accurate readings of distorted waveforms, unlike cheaper average-sensing meters, a difference set out in true RMS explained.
- Min, max, and average reading memory helps track fluctuating values over time.
- The integrated overmolded protection feels sturdy enough to survive accidental drops.
- Battery life is impressive; it powers through long sessions and even has an auto-off feature to conserve energy.
Downsides Worth Noting
No product covers every base, and the Fluke 177 brings a few quirks to the table. The weight and size might feel a bit bulky if you’re used to ultra-compact meters like the Fluke 115, which sometimes makes it less pocket-friendly. The backlight, while useful, drains the battery more quickly, so it is best used sparingly. Also, the lack of a dedicated temperature input means an accessory probe has to be purchased separately for thermal measurements, which adds to the overall cost, whereas the Fluke 179 builds temperature in. The beeper’s stretched pulse for continuity tests can be a little subtle in noisy environments, occasionally calling for a double-check of connections.
- The meter is slightly heavier than some competitors.
- Backlight usage reduces battery runtime noticeably.
- Temperature measurement requires additional accessories.
- The continuity beep isn’t always loud enough in a workshop setting.
Rugged Design and Practical Ergonomics

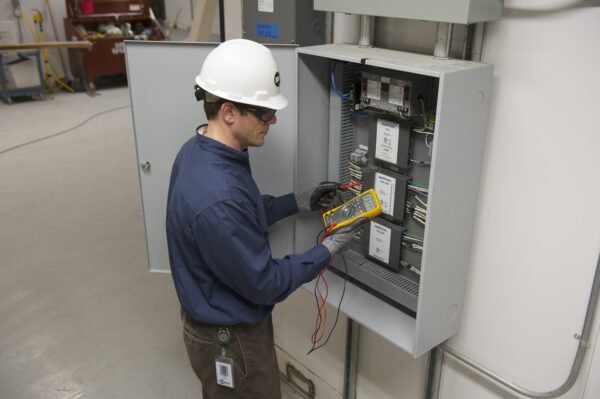

Fluke engineers clearly thought about real-world usage here. The ergonomic case with built-in holster fits comfortably in the hand and clips securely to belts or tool bags. That saves a lot of fumbling when climbing ladders or crawling under machinery. The overmolded rubber edges protect the device from shocks, which is what keeps a dropped meter working without a scratch or a calibration issue. Probe storage integrated into the case is a smart touch; it keeps everything together, avoiding lost leads.
The rugged feel and thoughtful design are the details working electricians tend to single out. The rotary switch clicks firmly, giving clear tactile feedback, and the display is sharp and easy to read at odd angles.
Versatile Measurement Capabilities
Beyond simple voltage and current checks, this multimeter handles frequency, capacitance, resistance, continuity, and diode testing. The auto-ranging mode is particularly handy when switching between different circuit elements, as the meter intelligently chooses the best scale. The minimum, maximum, and average recording modes earn their keep on a noisy power supply, where the built-in memory catches transient spikes that might otherwise go unnoticed.
The “LEAd” message appearing briefly when switching amps mode is a neat safety reminder, preventing accidental measurement errors. The closed case calibration via front panel is a professional feature usually reserved for pricier models, which means no sending it away for recalibration hassles.
Value Assessment: Is It Worth the Investment?
Considering its robust feature set, safety certifications (IEC 1010 CAT IV 600V, CAT III 1000V), and lifetime warranty, ratings decoded in the guide to multimeter CAT safety ratings, this multimeter offers strong value for professionals and serious hobbyists alike. While the initial cost might feel steep compared to budget brands, its accuracy, durability, and comprehensive functions justify the price. The long battery life and energy-saving auto-off feature add to the overall cost-effectiveness.
Comparing to lower-end meters, the Fluke 177’s True RMS measurement and faster display updates stand out, especially in environments with noisy or non-linear loads. If you’re looking for a tool that will last and deliver reliable readings without constant recalibration or replacement, this device represents a smart investment.
Product Rivals: How It Stacks Up
In the crowded multimeter market, the Fluke 177 competes with brands like Klein Tools MM6000 and Extech EX570. Compared to these, it excels in safety ratings and build quality. The Klein model offers good value but lacks the True RMS feature, which is crucial for accurate AC measurements in modern electronics. The Extech EX570 has a similar feature set but doesn’t quite match Fluke’s ergonomic design or display clarity.
However, some competitors offer better portability or additional features like built-in Bluetooth for data logging, which the Fluke 177 does not have. Despite this, the reassurance of Fluke’s lifetime warranty and reputation for durability often outweigh those incremental benefits for users in demanding fields.
Good Aspects That Make a Difference
- Highly accurate True RMS readings for complex waveforms.
- Comprehensive measurement modes including frequency and capacitance.
- User-friendly interface with backlit display and analog bar graph.
- Sturdy, impact-resistant casing with integrated probe storage.
Pitfalls to Keep in Mind
- Bulkier and heavier than some modern multimeters, which might affect portability.
- Backlight drains battery faster, so use it judiciously.
- Temperature measurements require separate accessories, adding cost.
- Continuity beep can be too soft in loud environments.
