Description

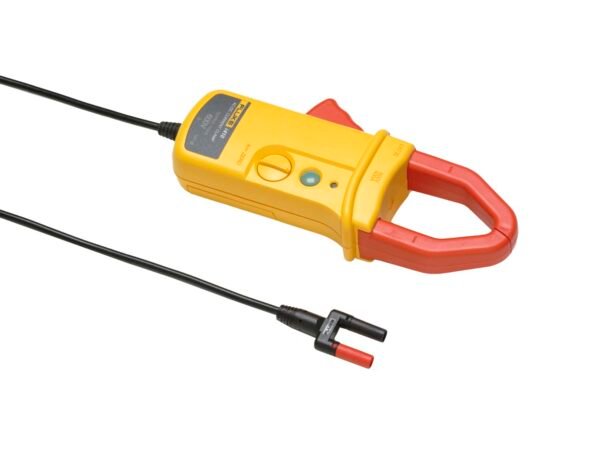

Highlights of the Fluke I410 AC/DC Current Clamp
The Fluke I410 AC/DC Current Clamp stands out for its ability to measure both AC and DC currents up to 400 amps. The clamp’s jaws open wide enough (up to 30mm diameter) to fit around most conductors found in residential and light industrial settings without having to disconnect anything. This non-intrusive measurement feature is incredibly handy, especially in tight spaces where cutting power or rewiring is a hassle. The attached 1.6-meter cable with safety-shrouded banana plugs connects easily to a digital multimeter such as the Fluke 115, which makes readings straightforward. The zero adjustment function is another plus; it allows the meter to be fine-tuned to zero before taking DC current readings, ensuring better accuracy.
- Measures AC and DC current up to 400 amps.
- Clamp opening fits conductors up to 30mm.
- Includes 1.6m output cable with shrouded banana plugs.
- Zero error adjustment for precise DC readings.
Drawbacks Worth Considering
This clamp meter isn’t without its quirks. The weight of about 300 grams isn’t much, but when juggling multiple tools, it feels a bit bulky compared to more compact models. The output cable, while convenient, can get in the way during cramped work conditions, especially if you’re moving around a lot. Another point is that the basic accuracy of ±3.5% plus 0.5 amps might not be sufficient for ultra-precise measurements in sensitive applications. Also, the clamp runs on a single 9V alkaline battery, which is standard, but a longer battery life or a low-battery indicator would be welcome. Lastly, the clamp’s yellow color, while bright for visibility, shows dirt quickly if you work in gritty environments.
- Slightly bulky for extended hand use.
- Output cable can be cumbersome in tight spaces.
- Accuracy might not satisfy high-precision needs.
- Battery life could be better; no low-battery alert.
Design and Build Quality
This tool sports a robust, yellow plastic exterior that feels solid in the hand. The clamp mechanism operates smoothly, closing securely around conductors without any wiggle, which supports measurement consistency. The dimensions (approximately 21 cm tall by 8 cm wide) provide a decent grip, but it’s not exactly pocket-sized. The clamp’s construction meets IEC safety standard 61010-1 and is rated CAT III for 600V installations, so it is cleared for fixed industrial equipment and household circuits alike. The included instructions are clear, which makes getting started straightforward.
Performance in Real-World Use

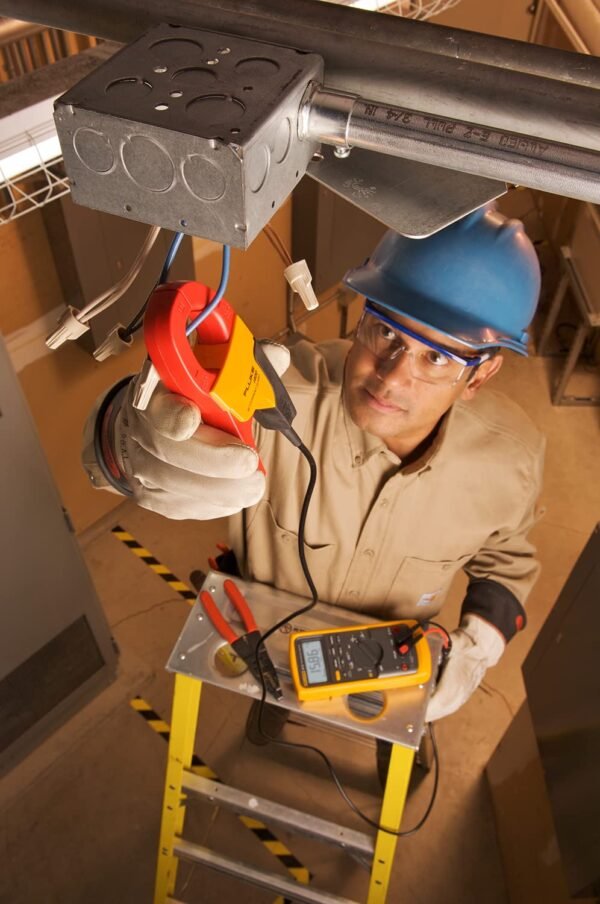

In daily use, the current clamp is reliable for diagnosing electrical issues without interrupting circuits, a technique the clamp meter guide explains in more depth. Checking the load on a 240V pump motor is a typical case, and the readings track expected values closely. The display output on a connected multimeter reads 1mV per amp, making it easy to interpret current levels. The clamp also avoids the usual fumbling with test leads, because it simply snaps around the wire. However, readings fluctuate slightly when the conductor isn’t centered inside the jaws, which means careful positioning is needed for best accuracy.
Value Assessment
Assessing the price against features, this current clamp offers solid bang for the buck if you need a tool that extends your multimeter’s capabilities with both AC and DC current measurement up to 400 amps. While you might find cheaper clamp meters, this one’s safety ratings and build quality justify a slightly higher investment. If your work demands frequent measurements in industrial or commercial environments, the CAT III 600V rating is a valuable safeguard. On the other hand, if you’re a casual user or hobbyist, less expensive options might suffice unless you specifically require both AC/DC capability and the zero adjustment feature.
Alternative Offerings in the Market
Comparing this clamp meter to other popular competitors, like the Klein Tools CL800 or the Amprobe ACDC-100, several points stand out. The Fluke’s ability to measure both AC and DC currents up to 400 amps is a clear advantage over many clamps that only handle AC. Its IEC and CAT III certifications also make it safer for higher voltage industrial use. However, some rivals offer additional functions like voltage, resistance, and continuity testing integrated into one device, reducing the need to carry multiple tools. Others might provide a digital display directly on the clamp, which this product lacks, requiring a separate multimeter for reading outputs. Still, the accuracy and safety features put this clamp in a strong position for professionals.
Ease of Use and Versatility
The clamp meter’s simplicity is a strong point. Plugging it into any compatible multimeter with shrouded banana plugs is straightforward, and the 1.6-meter cable length is a good balance between mobility and reach. The zero adjustment knob is easy to operate, which is crucial for DC measurements. Despite the cable’s occasional interference, the clamp’s ability to measure current without disconnecting circuits makes troubleshooting faster. It’s versatile enough for electricians, maintenance technicians, or anyone needing safe current measurement in fixed installations.
Practical Considerations and User Feedback
The first impression this clamp meter gives is a professional look and feel. For working electricians, the accuracy and CAT III rating make it suitable for industrial environments, unlike many hobbyist models. The bright yellow body is easy to spot in a crowded tool bag or against a dim panel. However, the absence of a display on the clamp itself means you need a compatible multimeter nearby, which might be inconvenient for quick spot checks. Also, the clamp’s power source (9V battery) means occasional replacement, which is not a huge deal but worth noting for heavy users.
The Fluke I410 inspires confidence in its safety and performance, especially for AC/DC current measurements in fixed installations and industrial settings. While it has minor ergonomic and accuracy quirks, its robust construction, safety certifications, and practical features make it a reliable tool in an electrician’s arsenal or any professional’s toolkit.
